Wind Up Lock With T Bar Handle
Timber Single Door With Wind Up Operation T Bar Handle Design
This design uses a wind up multipoint door lock operation. A lever handle is not required, everything operates with the euro cylinder. By turning the cylinder three revolutions you engage the locking points. To disengage you turn the cylinder three revolutions in the other direction, by turning the cylinder a further quarter turn you release the spring latch this allows the door to open. Be aware you do need the key to open this door.
| Part Number | Description | Quantity Required |
| MA-238352 | Door Lock | 1 |
| MA-218141 | Hook Keep | 2 |
| MA-218142 | Right Hand Latch Keep For 44mm Door |
1 Required |
| MA-218143 | Left Hand Latch Keep For 44mm Door | |
| MA-226774 | Right Hand Latch Keep For 56mm Door | |
| MA-226775 | Left Hand Latch Keep For 56mm Door |

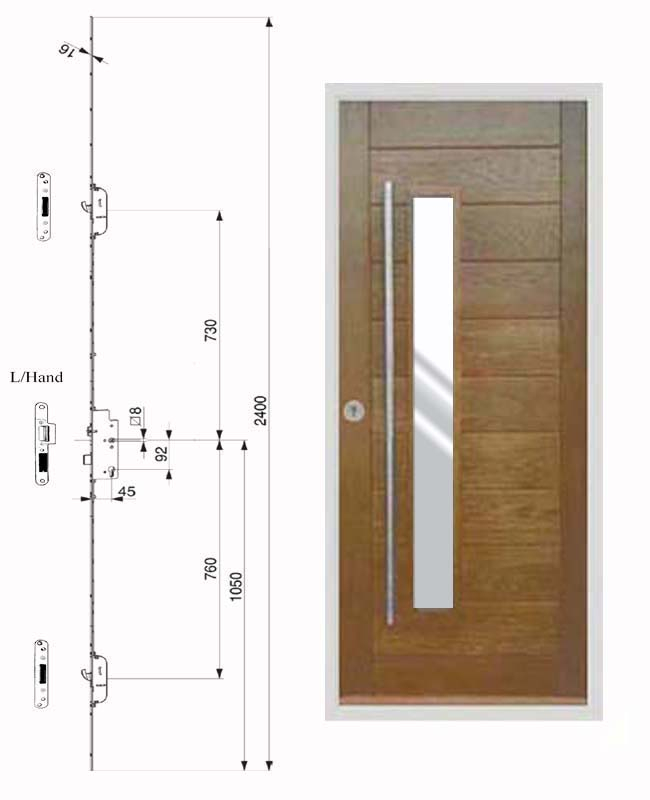

In the table are shown the components required for this type of door operation. To decide which latch keep is required, please see the diagram below:
