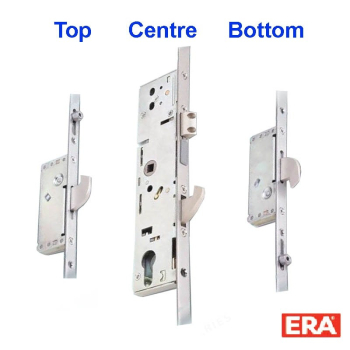

3 Hook 2 Roller 35mm B/Set 2250mm 92mm Ctr
Designed to meet the requirements of PAS 23 and PAS 24. 10 Year Guarantee. Available as 35mm Backset only with 16mm face bar. Non-handed lock mechanism with reversible sash bolt to minimise stock requirements. Snib facility as standard on all locks. Accepts standard 92mm unsprung handles and euro profile cylinders (operates with all BS and DIN specification cylinders and most other types of cylinder). Split spindle for lever/pad applications. Bi-directional throw of locking features - enhanced anti-jemmy feature. Triple high security forged brass hooks for anti- separation resistance - 10mm engagement into keeps. Hooks deadlocked in the fully thrown position. Continuous keep available. Precision adjustable rollers for enhanced performance and weather sealing. Optional shoot bolt engagement for additional security. Single and French door (slave lock unit) application.
