Windsor Dummy Handles
- Solid die cast zinc construction with heavy duty spring cassette - Sturdy feel and consistent 90 degree lever return
- Flexible purpose component - Enables all aspects of a job to be completed as a perfectly matching set
- Sculpted ergonomic lever and low friction nylon bush - Easy to grip and smooth action
- Supplied with screw and spindle pack to suit 60-70mm profiles - Everything needed for installation included
- Colour coordinated screw heads - Perfectly matching hardware even down to the smallest details
- Supplied fully assembled - Simple and quick installation no need to fit springs or lever
- Baseplate in common with all Windsor handles - Same routing detail regardless of product variant chosen
- Wide backplate - To suit cylinder guards and accommodate larger cylinder preparation
- Supplied with care instructions - Helps the homeowner to keep the hardware in optimal condition
- Silicon Site-Protectors available - Ensures perfect condition after installation
- Each part packaged in a separate chamber but supplied as a set - No scratching of parts during transit
- Technical Specification
- Designed for PVC-U and Composite doors
- All finishes salt spray tested to 480 hours(BS EN 1670: Class 5)
- Tested to 200000 cycles
- Tested as part of a complete door set that successfully achieved PAS24

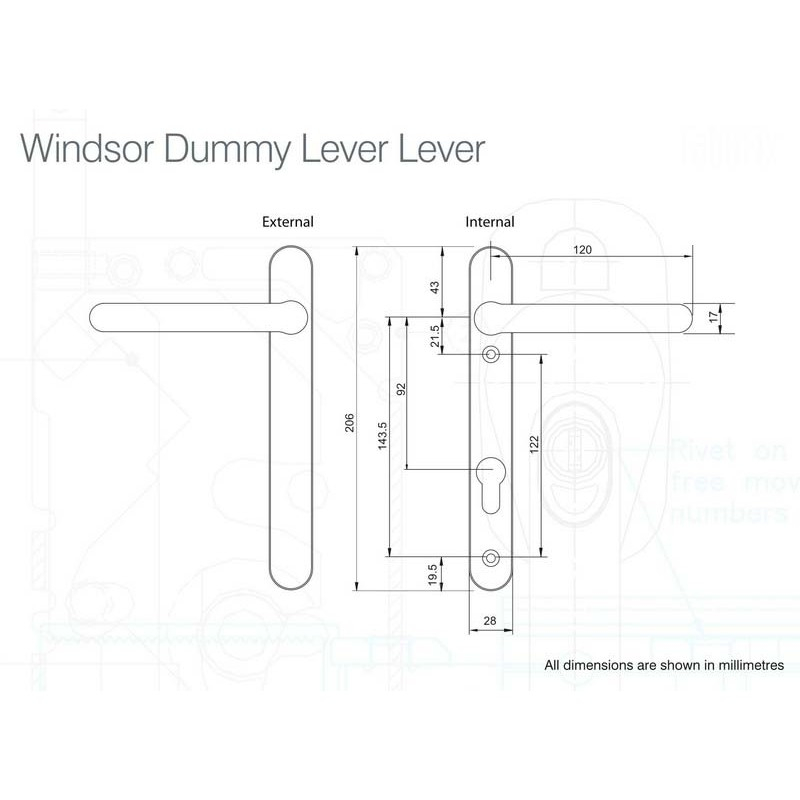

- 92mm PZ
- Includes screw and spindle pack suitable for 60mm - 70mm profiles (1 x 8mm x 120mm spindle 2 x M5 x 70mm colour coordinated machine screws 2 x M5 x 80mm colour coordinated machine screws)
