PH 357

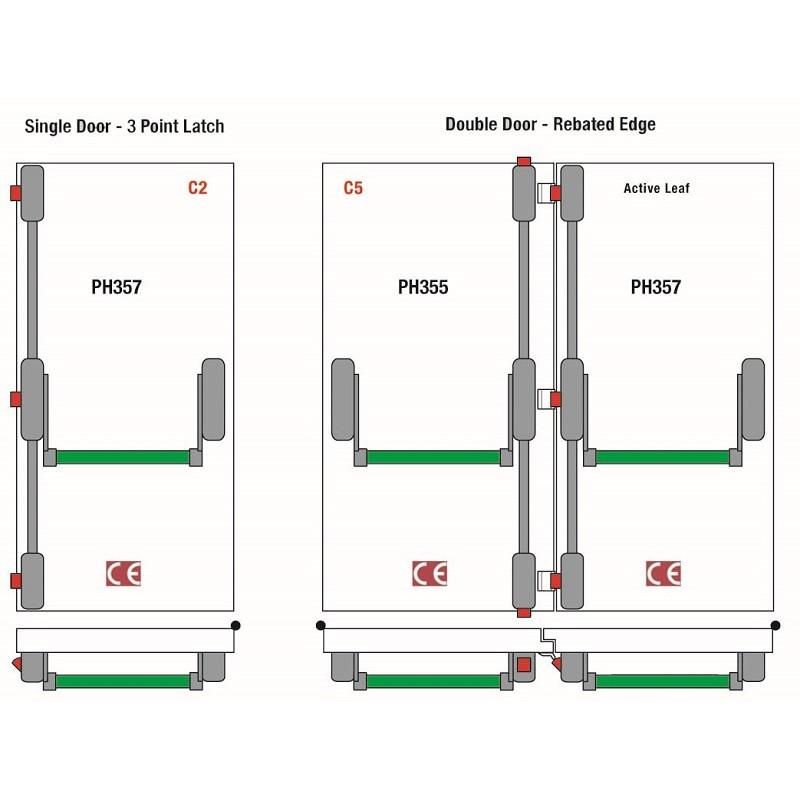

The modular push bar panic exit device range comprises a full width cross bar and modular components (standard mechanism, idler and cross arm). The range offers a large degree of flexibility and can provide 1, 2 and 3 point latches (with horizontal or side entry Pullman latches) and 2 or 3 point bolts (with vertical Pullman latches). Suitable for public buildings (such as hotels, schools, retail outlets, hospitals, nightclubs) where people are unfamiliar with surroundings. Standard devices suitable for doors upto 2585mm high, 1050mm wide, for larger doors variations available to suit doors upto 3150mm high, 1450mm wide
Click on any of the following links to download the file.
No detailed specifications are available for this product.
