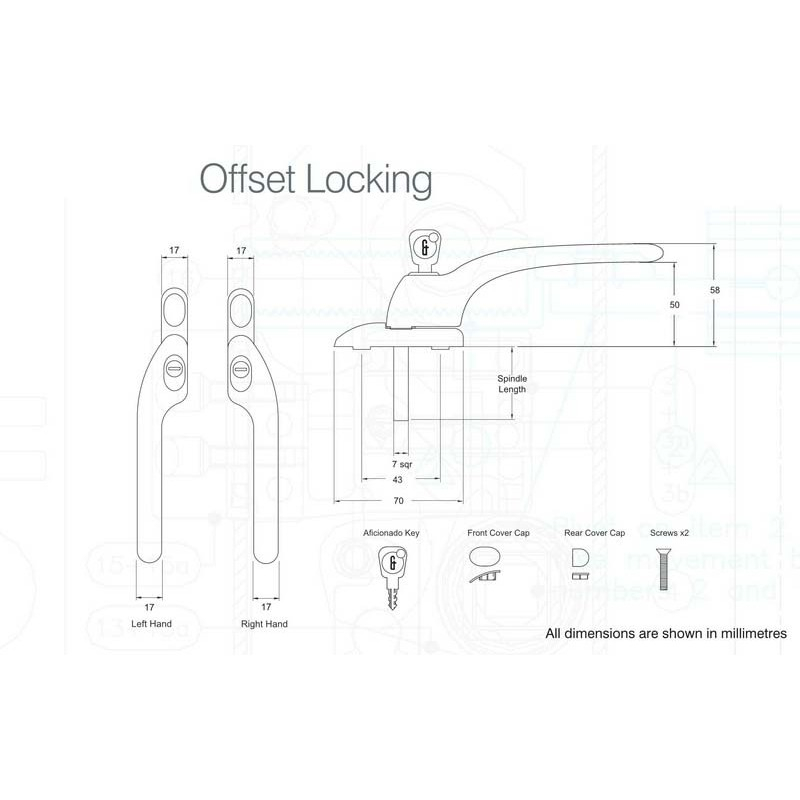

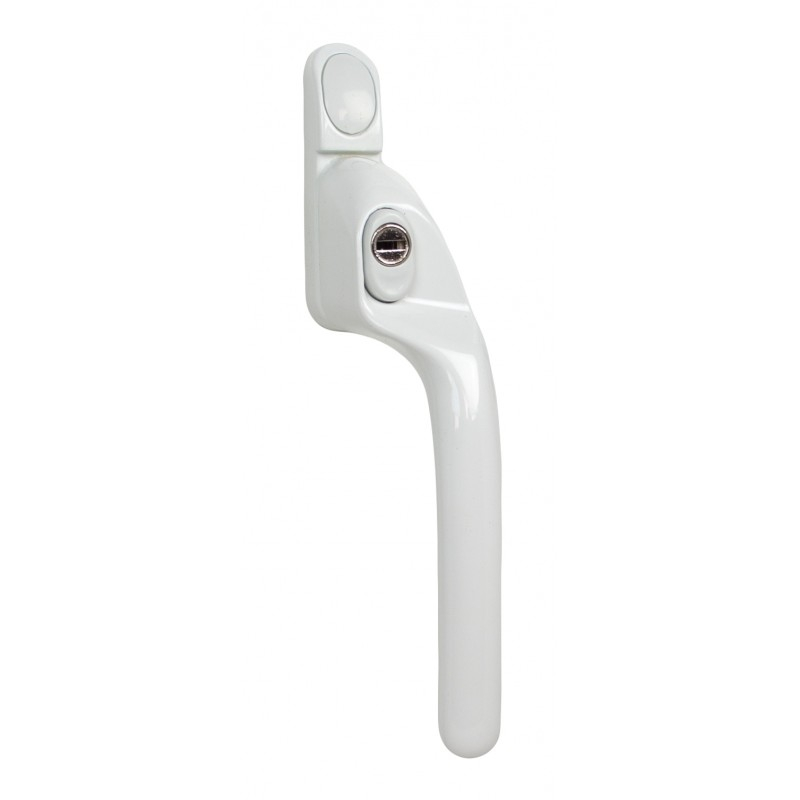

MK2 Offset Cranked Handle 40mm Spindle

  • Solid die cast zinc construction - Heavyweight handles with sturdy feel
  • Heavy duty sprung latching wedge - Positive click on closing
  • Long handle with 43mm window clearance - Greater leverage and easy to operate without catching a hand on the window
  • Classic design with a contemporary twist - Create an elegant and stylish window
  • Patented cover caps with colour coordinated finish - Perfectly matching components even down to the smallest details
  • Key clicks into place when inserted - Won't fall out of the lock even when pivoting the lever
  • Slotted spindle (40mm version only) - Allows cropping to 5mm increments
  • Technical Specification
  • Designed for PVC-U and Timber windows
  • Certified to BS 7950: 1997
  • All finishes salt spray tested to 480 hours (BS EN 1670:Class 5)
  • Tested to 50000 cycles

Click on any of the following links to download the file.

No detailed specifications are available for this product.

Code Description Price Quantity
FAB-0B440 Mk2 Locking O/set L/H White 40mm £3.10 (exc VAT) Each
FAB-0B140 Mk2 Locking O/set R/H White 40mm £3.10 (exc VAT) Each
FAB-0D445 Mk2 Locking O/set L/H Hardex Gold 40mm £6.75 (exc VAT) Each
FAB-0D145 Mk2 Locking O/set R/H Hardex Gold 40mm £6.75 (exc VAT) Each
FAB-0D441 Mk2 Locking O/set L/H Hardex Chrome 40mm £6.75 (exc VAT) Each
FAB-0D141 Mk2 Locking O/set R/H Hardex Chrome 40mm £6.75 (exc VAT) Each
FAB-WHACOPSLL40 Mk2 Locking O/set L/H Satin Silver 40mm £7.06 (exc VAT) Each
FAB-WHACOPSRL40 Mk2 Locking O/set R/H Satin Silver 40mm £7.06 (exc VAT) Each
FAB-0D443 Mk2 Locking O/set L/H Hardex Bronze 40mm £6.75 (exc VAT) Each
FAB-0D143 Mk2 Locking O/set R/H Hardex Bronze 40mm £6.75 (exc VAT) Each
FAB-0B441 Mk2 Locking O/set L/H Black 40mm £3.10 (exc VAT) Each
FAB-0B141 Mk2 Locking O/set R/H Black 40mm £3.10 (exc VAT) Each
FAB-0D148 Mk2 Locking O/set R/H Hardex Graphite 40mm £6.75 (exc VAT) Each
FAB-0D448 Mk2 Locking O/set L/H Hardex Graphite 40mm £6.75 (exc VAT) Each
FAB-0B144 Mk2 Locking O/set R/H Anthracite Grey 40mm £3.10 (exc VAT) Each
FAB-0B444 Mk2 Locking O/set L/H Anthracite Grey 40mm £3.10 (exc VAT) Each
FAB-0D146 Mk2 Locking O/set R/H Antique Black 40mm £6.95 (exc VAT) Each
FAB-0D446 Mk2 Locking O/set L/H Antique Black 40mm £6.95 (exc VAT) Each
