Heavy Duty Rest Egress 17mm

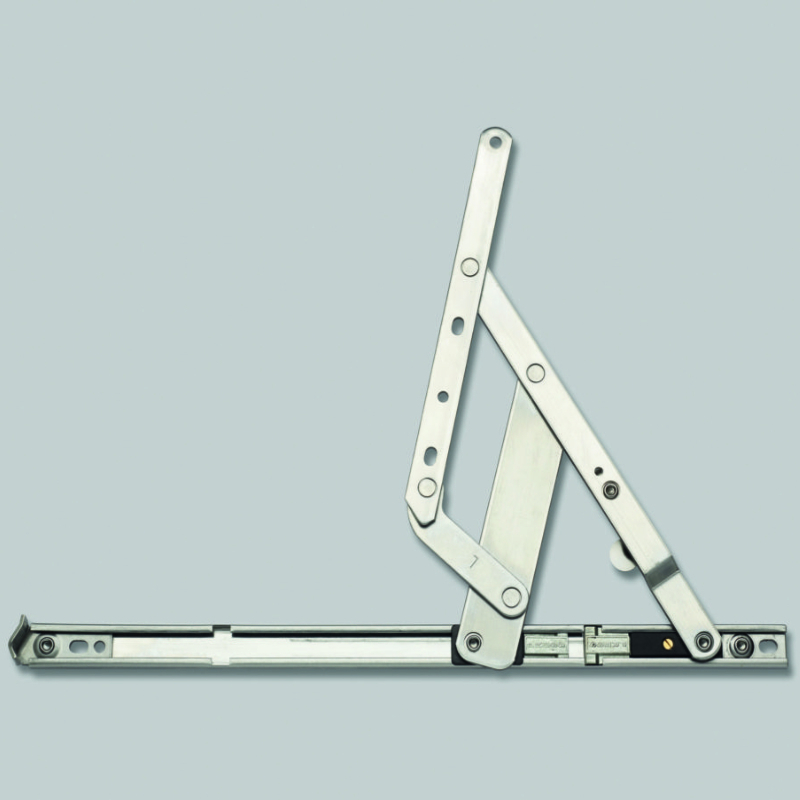

With four solutions in one hinge the Atlas Quad provides restriction, egress and easy clean functions on a 14? heavy duty side hung friction hinge. The restrictor is a simple, effective way of limiting the initial window opening to 100mm in compliance with BS8213-1:2004 ' Code of Practice for Safety in Use and Cleaning'. Windows incorporating the Quad stay also meet the requirements of BS EN 14351-1:2006 'Load Bearing Capacity of Safety Devices' and BS 6375-2 'Performance of Windows and Doors'. The Egress position is achieved following the release of the restrictor, and easy clean is then available at the push of a button. The Quad stay is suitable for vents with a width of up to 750mm and weights up to 45kg, and is part of the heavy duty Atlas hinge family.
Click on any of the following links to download the file.
No detailed specifications are available for this product.
